Description

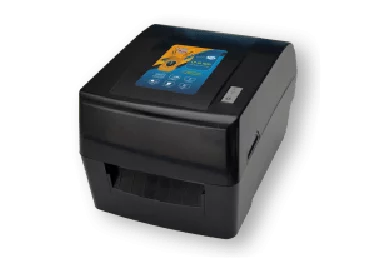

The TVS LP-46-NEO is a label printer designed for efficient and high-quality label printing in various industries. It offers a reliable and user-friendly printing solution with its advanced features and capabilities. The printer supports a wide range of label types and sizes, making it suitable for various labeling applications such as product labels, shipping labels, barcodes.
Print Specification
| Resolution | 203 dpi (8 dots/mm) |
| Max. Print Width | 4.09 inches (104 mm) |
| Maximum Print Speed | 6 inches(150) mm/second |
| Printing Method | Direct Thermal Line printing |
Product Details
| Model Name/Number | LP 46 NEO |
| Brand | Mynds TVS |
| Product Dimension (W x H X D) | 210 (W) x 280 (D) x 185 (H) mm |
| Weight | About 2.1 kg |
Ribbon and Media Capacity
| Ribbon Capacity | 300 m |
| Ribbon Width | Max.100 mm |
| Ribbon Length | Max. 300 mm |
Additional Details
| CPU Type | 32 bit RISC CPU |
| Power Source | Input Power – 110 – 240 VAC, 50/60 Hz Output Power – 24 DC, 2.5 A |
| 1D Barcode Types | Code 3 of 9, UPCA,UPCE, Interleaved 2 of 5, Code 128,EAN 13, EAN 8, HBIC39 code with check out,codabar industry CODE 25,storage and transportation code, UPC2,UPC5, Code 93, UCC/EAN, Matrix 25, Postnet code, etc |
| 2D Barcode Types | PDF417, MAXICODE, OR code, etc |
| Interface | USB + serial |
| Sensors | Paper Sensor – Transmission sensor removable, Reflection sensor removable |
| Operation Environment | 5°C – 45°C, 20% – 90% RH |
| Storage Environment | 40°C – 60°C, 20% – 93% RH |
| Paper Type | Marked paper, Black Marked paper, Folding paper, notched paper |
| Paper Width | 19~120 mm |
| Paper Thickness | 0.060.20 mm |
| Paper Roll OD | Max 27 mm |
| Paper Roll ID | 25/38 mm |
| Ribbon ID | 25.4 mm |
| Button, Light | 1 button,2 lights |
Features
- Allows printing wider tags
- Easy operation and maintenance
- Advanced Technology
- Thermal Print Head with better wear resistance
Applications
- Retail
- Logistics
- Hospitality
- Factories
